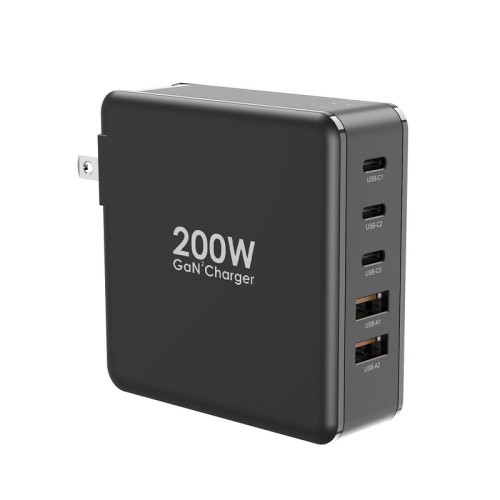

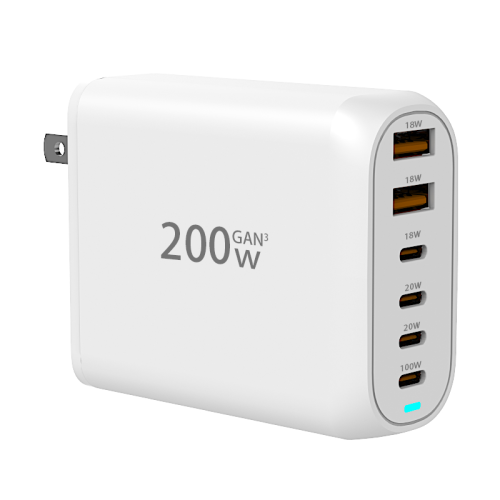

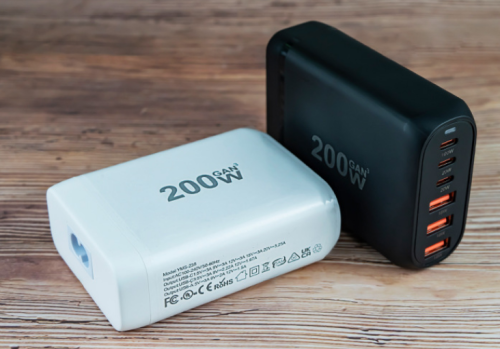

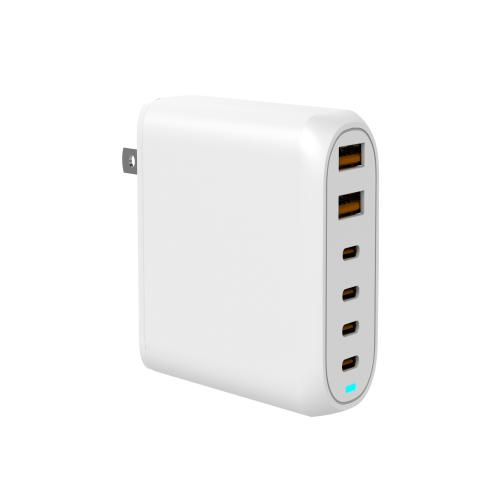

200W PD + QC3.0
Input Voltage: AC 90 - 264V 50/60Hz
Product Dimensions: 80 * 80 * 30mm
Overvoltage Protection: Yes
Input AC Connector: 2-pin Figure-8 Plug
DC Cable Length: USB - USB-A
Overcurrent Protection: Yes
Output: MAX 200W
Output Connector: TYPE-C
Overpower Protection: Yes
Output Efficiency: 92%
Product Weight: 198g
Short-circuit Protection: Yes
1 Port Output:
C1/C2/C3 = 5V/9V/12V/15V = 3A, 20V 5A (100W)
A1/A2 = 5V/9V/12V/15V = 3A, 20V 3.25A (65W)
2 Port Output:
C1 + C2 = (65W + 12W); (C1 + C3 ) = (100W + 100W); (C2 + C3) = (65W + 100W); (C1 Or C2) + A1 = (65W + 12W); (C3 + A1 Or A2) = (65W + 12W); (C1 Or C2) + A2 = (100W + 65W); A1 + A2 = (12W + 12W)
3 Port Output:
C1 + C2 + C3 = (65W + 12W + 100W); C1 + C2 + A1 = (65W + 12W + 65W); C1 + C2 + A2 = (65W + 12W + 65W); C1 + C3 + A1 = (100W + 65W + 12W); C1 + C3 + A2 = (100W + 65W + 12W); C2 + C3 + A1 = (65W + 65W + 12W); C2 + C3 + A2 = (65W + 65W + 12W)
4 Port Output:
C1 + C2 + C3 + A1 = (65W + 12W + 65W + 12W); C1 + C2 + C3 + A2 = (65W + 12W + 65W + 12W); C1 + C2 + A1 + A2 = (65W + 12W + 12W + 12W); C1 + C3 + A1 + A2 = (65W + 65W + 12W + 12W); C2 + C3 + A1 + A2 = (65W + 65W + 12W + 12W)
5 Port Output:
C1 + C2 + C3 + A1 + A2 = (65W + 12W + 65W + 12W + 12W)
Compatibility For APPLE
Certifications: CE, FCC, ROHS, UL
